CNC Machined | Hard Chrome Mirror Finish | IPF Color-Coded | ±0.5% Tolerance
Product Overview
As the original manufacturer behind some of the industry’s most distinguished calibrated weight plates, we bring precision engineering and premium finishing capabilities to every piece we produce. Our Chrome Steel Calibrated Weight Plates represent the pinnacle of luxury gym equipment—CNC-machined from solid steel, finished with a mirror-like hard chrome coating, and color-coded to IPF powerlifting specifications.
These plates are designed for discerning lifters, premium commercial gyms, and fitness brands that demand uncompromising accuracy, exceptional durability, and aesthetic excellence. Available in KG increments from 0.25kg to 25kg, sold as individual pairs or in complete sets (159kg and 459kg configurations).
1. Precision Engineering – CNC Machined Accuracy
Unlike cast iron plates that vary in weight and dimension, our calibrated plates are machined from solid steel billet on high-precision CNC lathes.
| Parameter | Specification |
|---|---|
| Construction | CNC machined from solid steel – no casting voids or inconsistencies |
| Weight Tolerance | ±0.5% (competition-grade accuracy) |
| Dimensional Accuracy | Diameter, thickness, and hole tolerance within 0.1mm |
| Consistency | Each plate is weight-matched to its pair for perfectly balanced loading |
Why CNC machining matters:
-
Unmatched weight accuracy – every plate meets its stated weight within tight tolerances
-
Perfect balance – no wobbling or uneven rotation on the barbell
-
Long-term durability – solid steel construction resists deformation
2. Material & Finish – Hard Chrome Mirror Coating
The signature mirror-finish hard chrome is more than cosmetic—it’s engineered for industrial-grade durability.
| Feature | Specification | Benefit |
|---|---|---|
| Base Material | High-grade cold-rolled steel billet | Structural integrity, no deformation under load |
| Coating | Hard chrome plating | Industrial-grade hardness, corrosion resistance |
| Finish | Mirror polish | Premium aesthetic, easy to clean |
| Durability | Multi-layer electroplating | Resists scratching, rust, and wear |
Hard chrome vs. decorative chrome:
Our hard chrome coating is applied through an industrial electroplating process that bonds at the molecular level—not a thin decorative layer. This results in exceptional resistance to scratching, corrosion, and the demands of daily gym use.

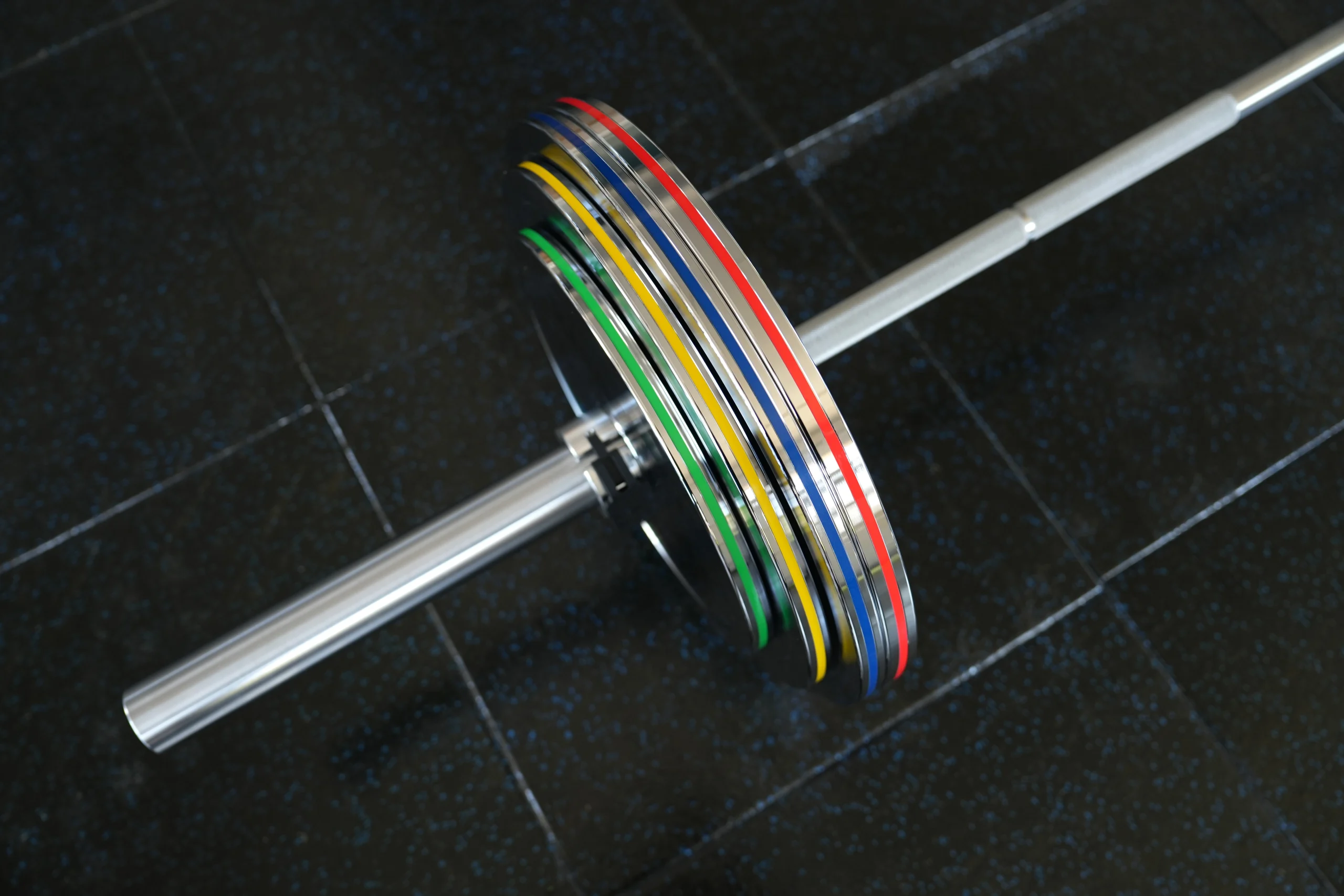

3. IPF-Compliant Color Coding – Instant Weight Identification
Each plate features a vibrant color-coded edge that meets International Powerlifting Federation (IPF) specifications, enabling instant weight recognition at a glance.
| Weight | IPF Color Code |
|---|---|
| 0.25 kg | – (micro-plate, no color band) |
| 0.5 kg | – (micro-plate, no color band) |
| 1.25 kg | – (micro-plate, no color band) |
| 2.5 kg | Red |
| 5 kg | White |
| 10 kg | Green |
| 15 kg | Yellow |
| 20 kg | Blue |
| 25 kg | Red |
Color coding features:
-
Durable painted band – applied to the outer edge, resistant to chipping
-
IPF standard colors – familiar to competitive powerlifters worldwide
-
High visibility – quick identification during training and competition
Complementary markings: Black vinyl-printed lettering provides clear weight readout, complementing the chrome finish.
4. Technical Specifications – Chrome Steel Calibrated Plates
| Parameter | 0.25kg | 0.5kg | 1.25kg | 2.5kg | 5kg | 10kg | 15kg | 20kg | 25kg |
|---|---|---|---|---|---|---|---|---|---|
| Material | High-grade steel, CNC machined | ||||||||
| Finish | Hard chrome, mirror polish | ||||||||
| Hole Diameter | 50.4mm ± 0.1mm (fits all Olympic barbells) | ||||||||
| Weight Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Color Code (IPF) | None | None | None | Red | White | Green | Yellow | Blue | Red |
| Sold As | Pairs | Pairs | Pairs | Pairs | Pairs | Pairs | Pairs | Pairs | Pairs |
Micro-plates (0.25kg, 0.5kg, 1.25kg): These precision-machined plates allow for fine progressive overload, ideal for powerlifters and athletes making incremental strength gains.
5. Available Set Configurations
We offer pre-configured sets that combine pairs of each weight increment for complete gym solutions.
159kg Set
| Included Plates (Pairs) | Total Weight |
|---|---|
| 1 × 0.25kg, 1 × 0.5kg, 1 × 1.25kg, 1 × 2.5kg, 1 × 5kg, 1 × 10kg, 1 × 15kg, 1 × 20kg, 1 × 25kg | 159kg |
459kg Set
| Included Plates (Pairs) | Total Weight |
|---|---|
| 1 × 0.25kg, 1 × 0.5kg, 1 × 1.25kg, 1 × 2.5kg, 1 × 5kg, 1 × 10kg, 1 × 15kg, 1 × 20kg, 7 × 25kg | 459kg |
Custom set configurations available for wholesale orders—we can tailor weight combinations to your market requirements.
6. Manufacturing Process – Behind the Precision
As the actual manufacturer, we control every step of production to ensure consistent quality.
-
Steel sourcing: High-grade cold-rolled steel billet, certified for structural consistency
-
CNC machining: Precision lathes and milling centers achieve exact diameters, thicknesses, and hole tolerances
-
Weight calibration: Each blank is weighed and fine-tuned to ±0.5% tolerance
-
Surface preparation: Polishing to achieve mirror-ready smoothness
-
Hard chrome plating: Multi-layer industrial electroplating process for durability and mirror finish
-
Color coding: Precision application of IPF-standard colored bands
-
Marking: Vinyl or laser-engraved weight markings
-
Final inspection: 100% weight verification, dimensional check, and visual inspection
7. Quality Control & Testing
| Test | Method | Standard |
|---|---|---|
| Weight Accuracy | 100% individual weighing with calibrated scales | ±0.5% |
| Dimensional Check | CNC coordinate measurement | Diameter ±0.2mm, thickness ±0.1mm |
| Hole Fit | Tested on 50mm gauge rod | 50.4mm ± 0.1mm |
| Finish Adhesion | Cross-hatch tape test | No peeling |
| Corrosion Test | 72-hour salt spray | No rust or discoloration |
| Hardness Test | Rockwell hardness verification | Consistent across batch |
8. Customization Solutions – OEM/ODM Capabilities
As the manufacturer, we offer comprehensive customization for brands, distributors, and commercial gyms.
| Customization Aspect | Options Available |
|---|---|
| Finish | Hard chrome mirror (standard); Black chrome; Satin nickel; Custom coatings |
| Color Coding | IPF standard (red/white/green/yellow/blue); Custom color bands per weight |
| Logo / Branding | Laser engraved; CNC engraved; Screen printed on plate face |
| Weight Markings | Engraved, printed, or laser marked; Custom fonts and placement |
| Weight Increments | KG or LB; Custom denominations |
| Set Configurations | Custom set combinations; Branded cartons with foam inserts |
| Packaging | Pairs in color boxes; Full sets in premium cartons; Bulk export pallets |
Minimum Order Quantities:
-
Standard finish (chrome): 20 pairs per weight
-
Custom finish/logo: 50 pairs per weight (negotiable)
Lead Time:
-
Sample order: 2–3 weeks
-
Standard production: 4–6 weeks for container orders
-
Custom production: 6–8 weeks
9. Production Capacity
| Capacity Metric | Specification |
|---|---|
| CNC Machining Capacity | 60+ precision lathes and machining centers |
| Plating Line Capacity | 15,000+ pieces per day |
| Monthly Output | 60,000+ pairs (120,000+ plates) |
| Annual Capacity | 700,000+ pairs |
Scale: We are equipped to handle both small-batch custom orders for boutique brands and high-volume container orders for national distributors.
10. Packaging Solutions
Retail-Ready Packaging (Pairs)
-
Color box with foam or molded pulp inserts to protect chrome finish
-
Individual PE bag for each plate
-
Labeling with SKU, weight, and barcode
Set Packaging (Premium)
-
Branded cartons with foam inserts for complete sets (159kg, 459kg)
-
Custom artwork for retail display
Bulk Export Packaging (Wholesale)
-
Heavy-duty export cartons with reinforced corners
-
Shrink-wrapped pallets with edge protectors
-
Container optimization: 20GP / 40HQ loading plans provided
11. Target Applications
Our Chrome Steel Calibrated Weight Plates are ideal for:
-
Premium Home Gyms: Mirror finish adds luxury to any training space
-
Powerlifting Gyms: IPF color-coding and ±0.5% tolerance meet competition standards
-
Commercial Fitness Facilities: Durable hard chrome withstands daily use
-
Hotel & Corporate Gyms: Premium appearance reflects facility quality
-
Fitness Brands (OEM): Create your own branded line of calibrated plates
-
Strength Training Facilities: Precision weights for progressive programming
12. Comparison: CNC Machined Hard Chrome vs. Cast Iron Plates
| Attribute | Our Chrome Steel Plates | Traditional Cast Iron |
|---|---|---|
| Construction | CNC machined solid steel | Cast (sand mold) |
| Weight Tolerance | ±0.5% | ±2–3% |
| Finish | Hard chrome mirror | Paint (chips, rusts) |
| Durability | Industrial grade – resists scratches, corrosion | Moderate – paint wears, rusts |
| Color Coding | IPF-standard painted bands | Painted or stickers (wear off) |
| Aesthetics | Luxury mirror finish | Industrial, utilitarian |
| Balance | Perfectly balanced | May have voids or imbalances |
| Price Point | Premium | Standard |
13. Why Choose Us as Your Manufacturer?
| Advantage | Benefit |
|---|---|
| True Manufacturer | Direct factory access—no middleman margins |
| CNC Machining Expertise | 60+ precision machines for consistent quality |
| In-House Plating | Full control over hard chrome finishing process |
| IPF Color Coding | Precision application of competition-standard color bands |
| Customization Flexibility | Full OEM capabilities—finish, branding, packaging, sets |
| Quality Assurance | 100% weight inspection and dimensional verification |
| Scalable Production | Capacity for both small custom runs and high-volume orders |
| Global Export Experience | Proven logistics to North America, Europe, Australia, Asia |
