Eco-Friendly Recycled Rubber | Softer Bounce | Quiet Impact
Product Overview
BP005-1 Crumb Rubber Bumper Plate represents a new generation of eco-conscious gym equipment. Unlike conventional bumper plates that use a recycled coating over virgin rubber, these plates are fully constructed from recycled rubber granules sourced from post-consumer shoes and industrial rubber waste.
The result is a plate with a distinctive stone-like texture, approximately 10% softer than standard training plates, delivering a quieter impact and controlled bounce that is gentler on floors and equipment. Available in 5kg, 10kg, and 20kg, these plates are ideal for commercial gyms, CrossFit boxes, and home gyms seeking an eco-friendly alternative without compromising performance.
1. Material – 100% Recycled Rubber Construction
As a manufacturer, we take full control over our material sourcing and compounding process.
Raw Material Source
-
Recycled rubber granules derived from:
-
Post-consumer shoe soles
-
Industrial rubber waste
-
Pre-consumer manufacturing offcuts
-
-
Polyurethane bonding agent – ensures structural integrity and consistent rebound characteristics
Material Properties
| Property | Specification |
|---|---|
| Composition | 100% recycled rubber (no virgin rubber core or coating) |
| Hardness | Approximately 10% softer than standard training plates (approx. 70A–75A Shore) |
| Rebound | Controlled, slightly higher bounce than virgin rubber plates |
| Impact Noise | Quieter floor contact – ideal for noise-sensitive environments |
| Appearance | Distinctive stone-like texture with natural color variation |
Sustainability Credentials
-
Eco-friendly manufacturing – diverts waste from landfills
-
Lower carbon footprint compared to virgin rubber production
-
Recyclable at end of life – supports circular economy principles
2. Customization Solutions
As the direct manufacturer, we offer flexible OEM/ODM options to align with your brand identity.
| Customization Aspect | Options Available |
|---|---|
| Logo Integration | Debossed (recessed) with optional color fill; Silkscreen printed; Molded-in label |
| Hub Finish | Matte black powder coat (standard); Polished chrome; Custom color matching |
| Weight Markings | Debossed with high-contrast fill; Silkscreen printed; Laser engraved |
| Color Tones | Natural recycled rubber appearance (varies by batch); Custom color mixing available for larger orders |
| Packaging | Bulk export pallets; Color box retail packaging; Eco-friendly kraft paper sleeves |

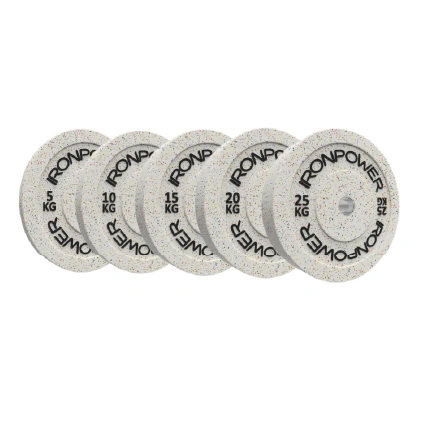

| Set Configuration | Custom weight sets (e.g., 50kg, 70kg, 100kg kits) with branded cartons |
MOQ Flexibility: We accommodate both container-sized orders for distributors and smaller batch orders for boutique brands entering the eco-friendly fitness market.
3. Production Process – Quality Control at Every Stage
Manufacturing Steps
-
Material Sorting & Cleaning: Recycled rubber granules are sorted, cleaned, and screened for consistency
-
Mixing & Binding: Granules are combined with polyurethane binder in precise ratios
-
Compression Molding: High-pressure molds form the plates to exact dimensions (450mm diameter, specified thicknesses)
-
Hub Insertion: Steel hubs are integrated during molding – no post-assembly bonding
-
Curing: Temperature-controlled curing ensures structural integrity and consistent rebound
-
Final Finishing: Silicone-based surface treatment for protection (removable with cloth or wears naturally)
Quality Testing
| Test | Method | Frequency |
|---|---|---|
| Weight Accuracy | 100% individual weighing – ±3% tolerance | Every plate |
| Drop Test | 10,000+ cycles from 1.2m onto concrete | Per batch |
| Hub Adhesion | Pull-out force testing | Per batch |
| Dimensional Check | 450mm diameter ± 2mm; 50mm bore ± 0.2mm | Per batch |
| Rebound Consistency | Drop height rebound measurement | Per material batch |
4. Technical Specifications

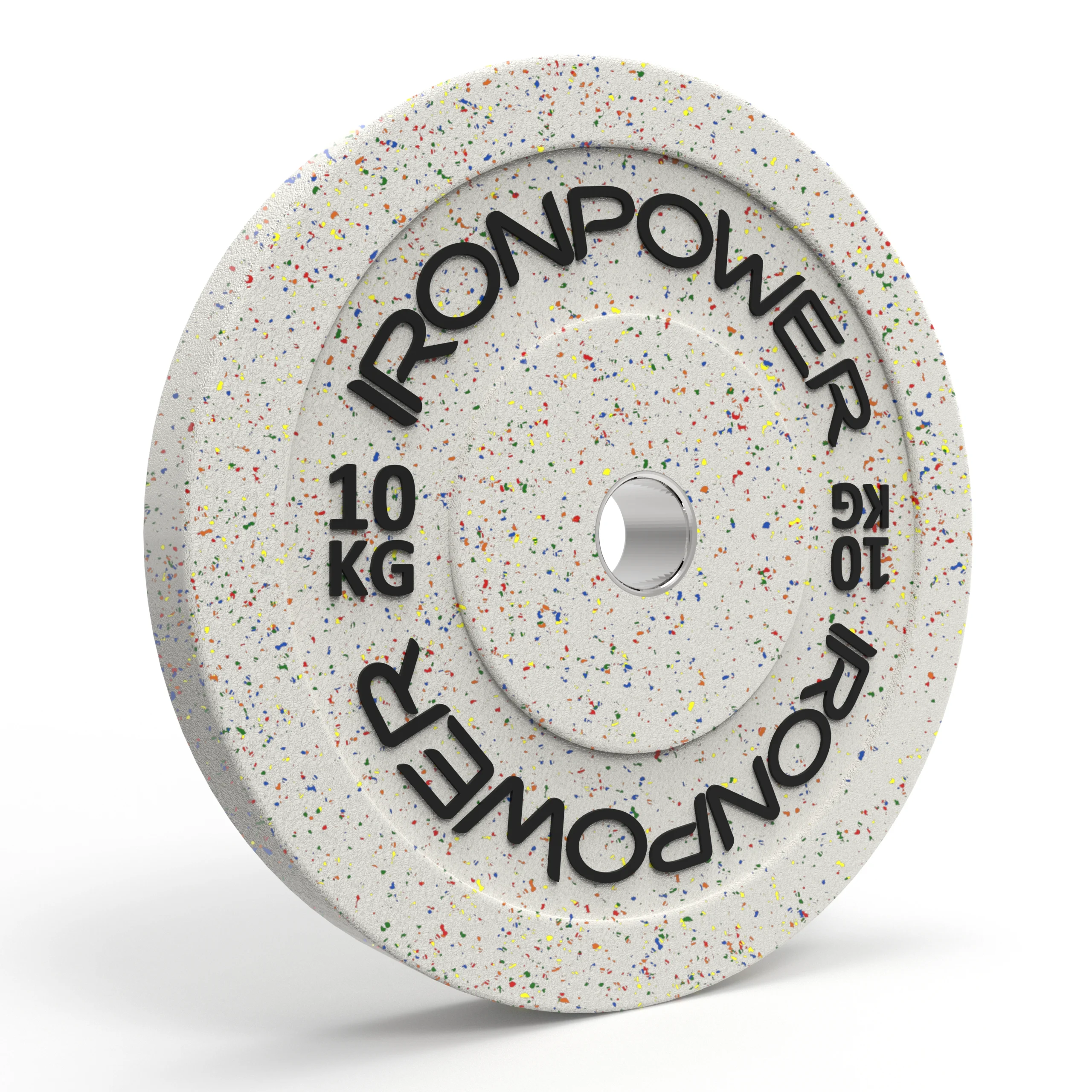

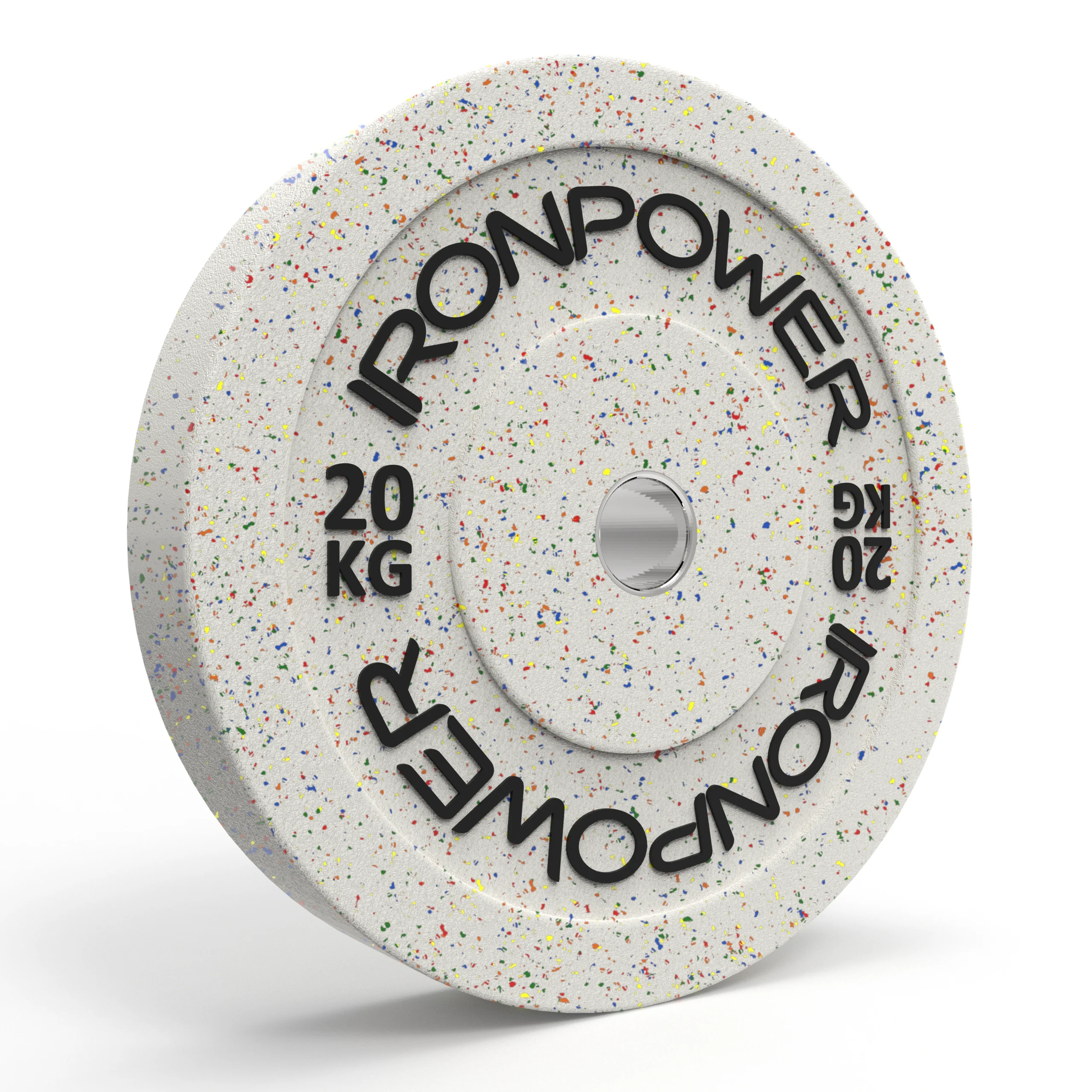

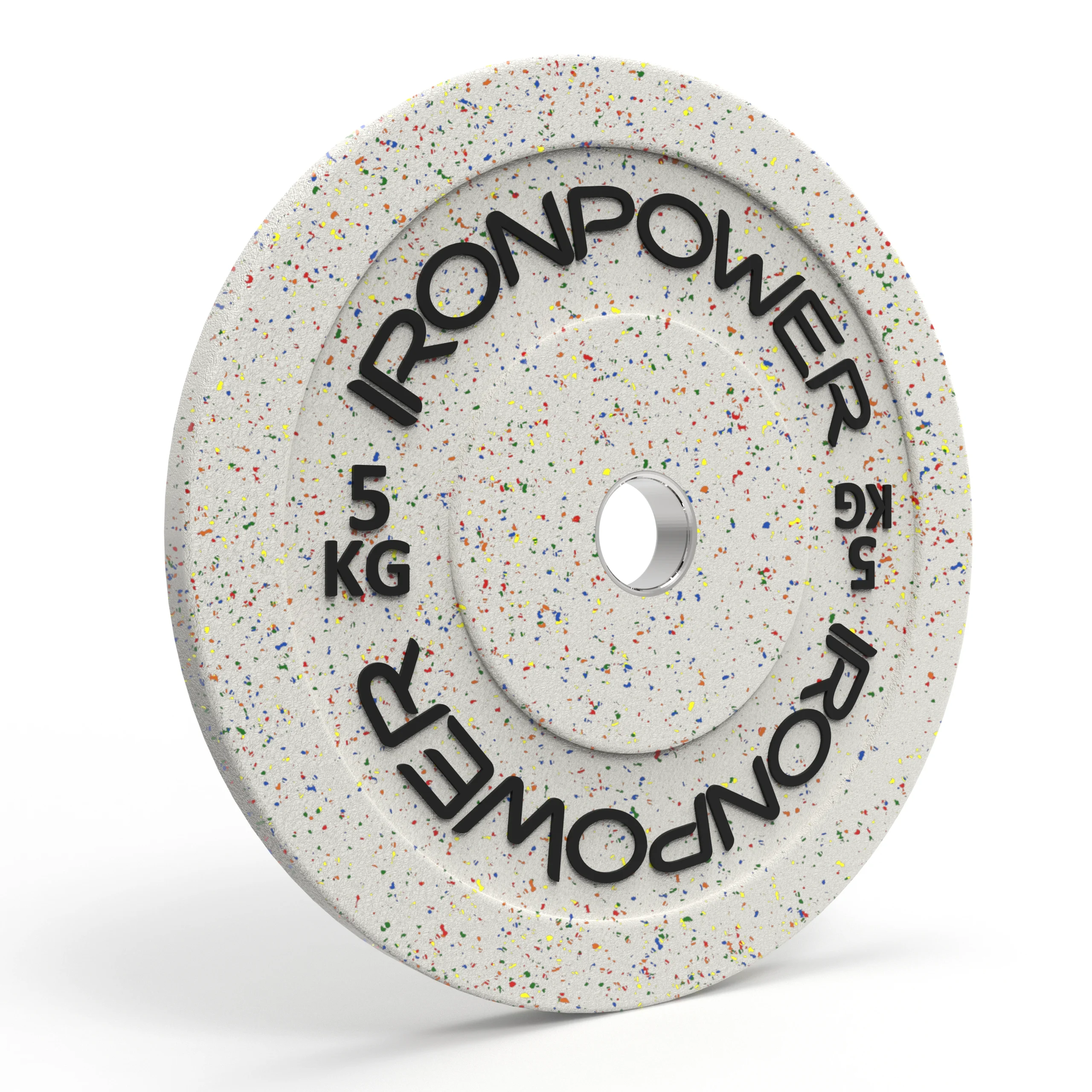

| Parameter | 5kg (9040/7) | 10kg (9042/7) | 20kg (9044/7) |
|---|---|---|---|
| Material | 100% recycled rubber with steel hub | 100% recycled rubber with steel hub | 100% recycled rubber with internal metal core (to achieve weight within 450mm diameter) |
| Diameter | 450 mm | 450 mm | 450 mm |
| Inner Bore | 50 mm | 50 mm | 50 mm |
| Thickness | 32 mm | 59 mm | 76 mm |
| Weight Tolerance | ±3% | ±3% | ±3% |
| Hub Material | Powder-coated steel | Powder-coated steel | Powder-coated steel |
| Hardness | 70A–75A Shore | 70A–75A Shore | 70A–75A Shore |
Note on 20kg Construction: To maintain the standard 450mm diameter while achieving 20kg weight, a small metal core is incorporated inside the recycled rubber matrix. This does not affect performance or durability.
5. Performance Characteristics
| Feature | Benefit |
|---|---|
| Softer Composition | 10% softer than standard training plates – reduces impact stress on floors and equipment |
| Quiet Impact | Ideal for apartment gyms, hotels, and noise-sensitive commercial facilities |
| Controlled Bounce | Predictable rebound for safe training; not excessive like low-quality recycled plates |
| Floor-Friendly | Gentler on concrete, rubber flooring, and wooden subfloors |
| Unique Aesthetic | Stone-like texture with natural color variation – each plate has distinctive character |
| Eco-Friendly | Made from recycled shoe rubber – appeals to environmentally conscious gym owners and members |
6. Packaging Solutions
Export Packaging (Standard)
-
Heavy-duty export cartons with reinforced corners
-
Shrink-wrapped pallets with edge protectors
-
Container optimization: Custom carton dimensions to maximize 20GP / 40HQ loading
-
Labeling: Product SKU, weight, quantity, and handling instructions
Retail-Ready Packaging (Optional)
-
Color box packaging with brand graphics and product information
-
Individual PE bag wrapping to protect surface finish
-
Eco-friendly option: Recycled kraft paper sleeve with soy-based ink printing
-
Set packaging: Branded cartons for complete weight sets
7. Production Capacity & Lead Time
| Capacity Metric | Specification |
|---|---|
| Dedicated Production Lines | 4 lines optimized for recycled rubber bumper plates |
| Daily Output | 6,000–8,000 pieces (approx. 50–70 metric tons) |
| Monthly Capacity | 150,000+ pieces |
| Annual Capacity | 1,800,000+ pieces |
| Order Type | Lead Time |
|---|---|
| Sample Order | 7–10 days |
| 20FT Container | 15–20 days |
| 40HQ Container | 20–25 days |
| Custom Logo/Color (40HQ) | 30–35 days |
MOQ: 500 pieces per weight (mixable across 5kg, 10kg, 20kg)
