IWF Standard | Precision Engineered for Olympic Lifting
Product Overview
The BP003 is our flagship competition-grade bumper plate, engineered to meet International Weightlifting Federation (IWF) standards for elite training and sanctioned competitions. With a controlled rebound rate, ultra-thin profile, and ±0.5% weight tolerance, this plate is trusted by national teams, high-performance training centers, and premium gym brands worldwide.
1. Customization Solutions
While the BP003 is engineered to IWF specifications, we offer extensive customization options to align with your brand identity without compromising performance standards.
| Customization Aspect | Options Available |
|---|---|
| Logo Integration | Debossed (recessed) with color fill; Embossed raised design; Molded-in logo for permanent branding |
| Hub Finish | Polished chrome; Matte black coating; Stainless steel (corrosion-resistant) |
| Color Matching | IWF standard colors (red/25kg, blue/20kg, yellow/15kg, green/10kg, white/5kg) or custom Pantone matching for exclusive brand collections |
| Engraving | Laser-engraved weight markings, batch numbers, or certification stamps on hub face |
| Packaging | Individual color box with brand graphics; Eco-friendly kraft paper sleeve; Bulk export palletized packaging |
OEM/ODM Capability: We provide full design-to-production support, from 3D rendering of your logo placement to mold development, ensuring your branded competition plate stands out in the market.
2. Production Process & Quality Assurance
The BP003 is manufactured through a precision compression molding process with strict adherence to IWF technical specifications.
Raw Material Selection
-
High-density virgin rubber compound – Formulated to achieve the exact shore hardness (85A ± 2) required for controlled rebound (IWF standard: ≤ 30% of drop height)
-
High-grade steel insert – Precision-machined from cold-rolled steel with nickel-chrome plating for rust resistance and consistent sleeve fit
Key Manufacturing Steps
-
Raw Material Mixing: Automated batching system ensures formula consistency across every production run
-
Precision Molding: High-pressure compression molds with CNC-machined cavities guarantee dimensional accuracy and smooth finish
-
Hub-Rubber Bonding: Proprietary adhesive treatment and high-temperature vulcanization ensure zero hub separation, even after thousands of drops
-
Final Calibration: Each plate is individually weighed and matched to ensure pair consistency
Quality Testing (Per Batch)
-
Drop Test: 30,000+ cycles from 1.2m onto concrete surface – no cracking, no hub loosening
-
Weight Accuracy: 100% inspection with certified scales; tolerance maintained at ±0.5% (meeting IWF Class 2 requirements)
-
Hub Fit Test: Tested on standard IWF-spec barbell sleeves (50mm) to ensure smooth loading and secure fit
-
Salt Spray Test: 72-hour corrosion resistance verification for hub plating
3. Production Capacity & Lead Time
As a dedicated manufacturing facility with specialized competition plate production lines, we are equipped to handle both high-volume container orders and scalable pilot runs.
| Capacity Metric | Specification |
|---|---|
| Dedicated Molding Presses | 8 high-tonnage presses exclusively for competition plate production |
| Daily Output | Up to 8,000 pieces (approximately 120 metric tons) |
| Monthly Capacity | 200,000+ pieces (3,000+ metric tons) |
| Container Loading | Optimized palletization: 1,500–2,000 plates per 40HQ depending on weight distribution |
| Order Type | Lead Time |
|---|---|
| Sample Order | 7–10 days (custom logo included) |
| 20FT Container | 15–20 days after sample approval |
| 40HQ Container | 25–30 days after sample approval |
| Bulk Order (Multiple Containers) | 35–45 days; scalable with staggered shipping |
Peak Season Capacity: Maintained at 50+ containers/month with no quality compromise – ideal for Q3/Q4 gym equipment procurement cycles.
4. Technical Specifications (BP003)
| Parameter | Specification |
|---|---|
| Standard | IWF Competition Standard |
| Weight Tolerance | ±0.5% |
| Rebound Rate | ≤ 30% of drop height (controlled, non-erratic bounce) |
| Hub Material | Cold-rolled steel, nickel-chrome plated |
| Hub Bore Diameter | 50.4mm ± 0.1mm (precision fit for IWF barbells) |
| Rubber Hardness | 85A Shore ± 2 |

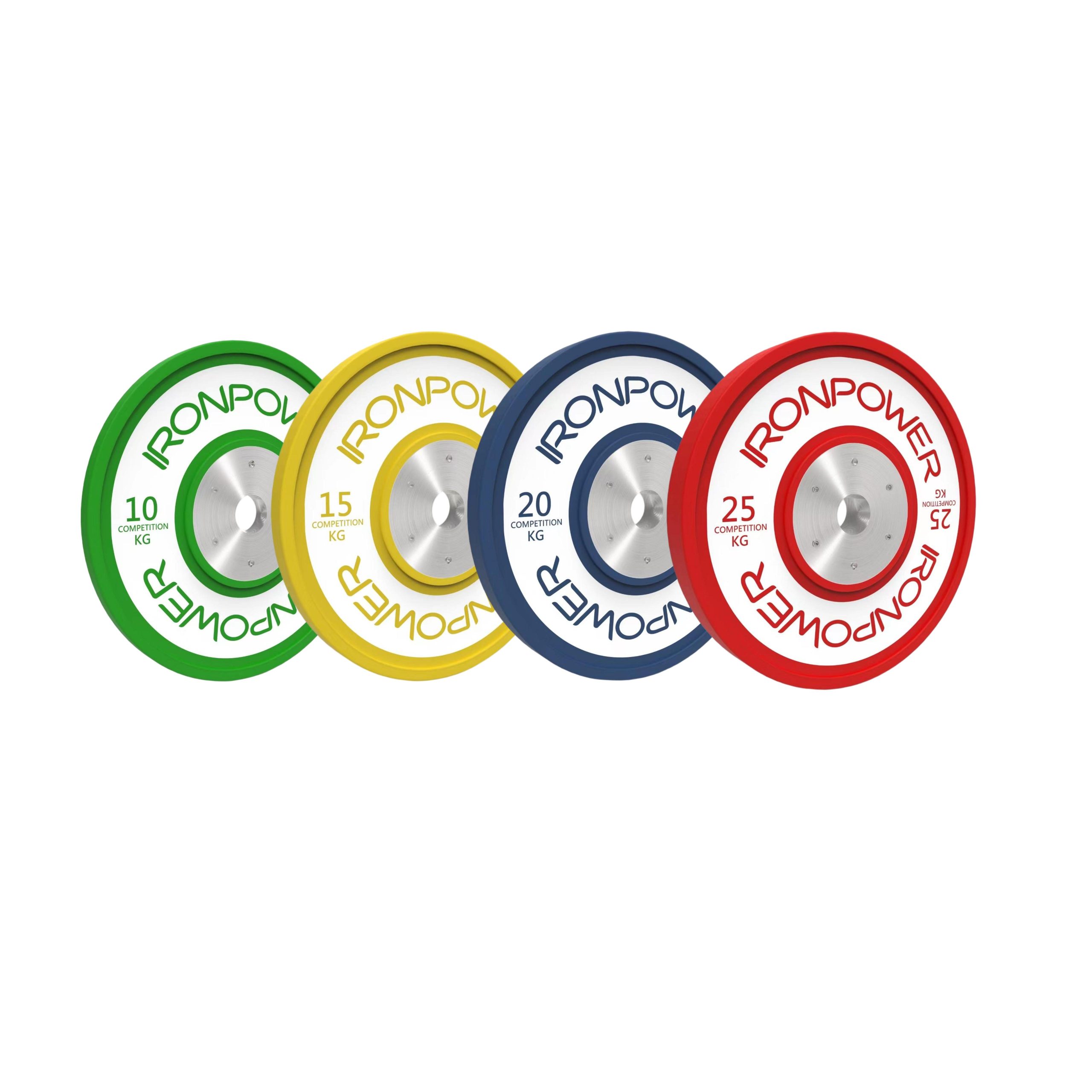

| Available Weights | 5kg, 10kg, 15kg, 20kg, 25kg (set configurations available) |
| Certifications | IWF compliant; CE, EN 12523, SGS testing available |
5. Packaging & Logistics
We tailor packaging solutions to balance product protection, brand presentation, and shipping efficiency.
-
Retail-Ready Packaging:
-
Full-color custom printed boxes with insert sleeves
-
Individual PE bag wrapping to protect finish during handling
-
QR code on packaging linking to product certification or assembly guide
-
-
Export Packaging:
-
4–6 layers shrink-wrapped pallets with reinforced corner guards
-
Carton optimization to maximize 20GP / 40HQ container utilization
-
Marking and labeling per your warehouse requirements
-
-
Logistics Support:
-
In-house logistics team coordinates sea freight (FOB/CIF)
-
Experienced with LCL and FCL shipments to North America, Europe, Australia, and Middle East markets
-
Why Partner With Us for BP003?
-
Factory Direct: No trading margins – you pay for manufacturing expertise
-
Consistent Quality: Every batch produced from identical molds, materials, and calibrated processes ensures brand consistency across reorders
-
Scalable Partnership: From boutique gym brands to national distributors, our capacity scales with your growth
-
Documentation Ready: Full certification packages, commercial invoices, and customs documentation provided for seamless import
